LNEYA Chillers

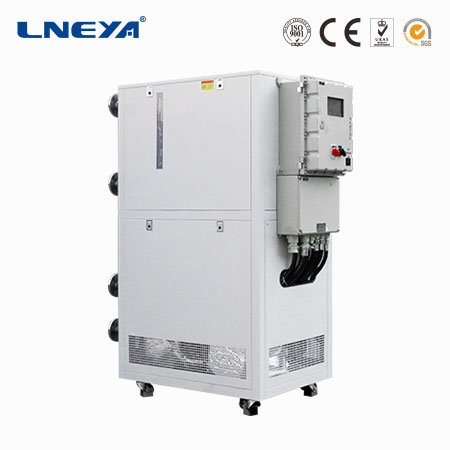

UC +50℃~170℃ heating circulator
Can temperature control reaction material- Heating Power3kW~38kW
- Cooling power0.6kW~38kW
- Power range2.2kW~39.5kW
- Temperture accuracy±0.5℃
- Weight30kG~380kG
- Details
Parameters Detailed
- Heating Circulator UC series with function from high temperature to cooling process, from 300℃~50℃.
- Equipped with heating cooling container, with large heat transfer area, fast heat-up and cool-down, small heat transfer oil demand.
- Can heat-up and cool-down continuously.
- The whole cycle is full closed,there is no oil mist at high temperature, heat transfer oil can not be oxidized and browning.
- With function of internal PT100 for correcting internal circulation.
- The whole system is closed with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃.
| Model | LY-5020 | LY-A020 | UC-5020 | UC-A1020 | UC-A1520 | |||||
| Temperature range | 50℃～200℃ | |||||||||
| Controller | PID adaptive controller | |||||||||
| Temp. control optional | Heat-conducting medium outlet temp. control | |||||||||
| Communication protocol | MODBUS RTU protocol RS 485 interface | |||||||||
| Temperature feedback | Heat-conducting medium temperature feedback PT100 | |||||||||
| Temp. accuracy | ±0.5℃ | |||||||||
| Heating power | 5.5kw | 10kw | 5.5kw | 10kw | 15kw | |||||
| Cooling capacity | 200℃ | 5.5kw | 10kw | 15kw | ||||||
| 100℃ | 4kw | 8KW | 12kw | |||||||
| 65℃ | 1.8kw | 3.4KW | 5kw | |||||||
| Circulation pump | Max35L/min2BAR | Max50L/min2BAR | Max35L/min 2BAR | Max50L/min 2BAR | Max50L/min 2BAR | |||||
| Heater | Flanged pipe electric heater | |||||||||
| Independent temperature limiter | Lneya | |||||||||
| Cooler | Plate heat exchanger/Tube heat exchanger | |||||||||
| Operation panel | Display set temperature and measured temperature，key operation input temperature | |||||||||
| Sefety protection | Self-diagnostics；high pressure switch，overload relay、variety of security features such as thermal protection devices | |||||||||
| Closed circulation system | The entire system is a fully enclosed system，no oil mist at high temperatures、low temperature does not absorb moisture in the air，the system does not increase the pressure due to high temperature during operation，the low temperature automatically replenishes the heat transfer medium | |||||||||
| Connection size | ZG3/4 | ZG3/4 | ZG3/4 | ZG3/4 | ZG1 | |||||
| Dimensions cm | 45*65*120 | 45*65*120 | 45*65*120 | 55*68*145 | 70*100*175 | |||||
| Weight | 70kg | 80kg | 78kg | 128kg | 170kg | |||||
| Power | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ | AC 380V 50HZ | |||||
| 5.9kW (max) | 10.8kW (max) | 5.9kW (max) | 10.8kW (max) | 15.7kW (max) | ||||||
| Case material | Cold rolled sheet spray | |||||||||
| Optional | Optional 7-inch color touch screen，recording temperature curve，data export using excel format | |||||||||
| Optional | SUS304 shell | |||||||||
| Optional power | 220V 60HZ three phase，440V～460V 60HZ three phase | |||||||||
Configuration Details
