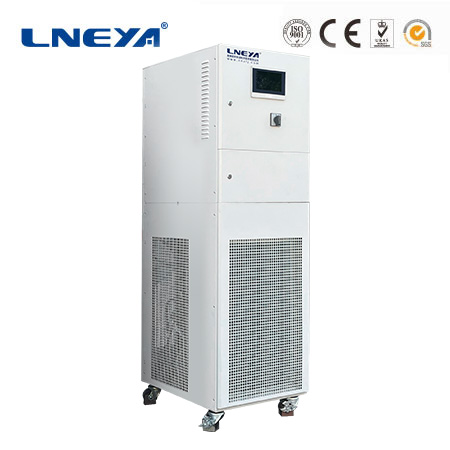

The laboratory thermostat is a laboratory temperature control equipment produced by LNEYA that integrates heating and cooling.

1. Confirm that the status of the valves related to the laboratory refrigeration and heating equipment meets the start-up requirements, and supply power and power on the electronic control device of the laboratory thermostat integrated unit;
2. Turn on the switch to make the power control indicator light on, start the cooling water pump, cooling fan, and refrigeration pump, and you should be able to see the three laboratory refrigeration and heating equipment operation indicators on;
3. Check the temperature of the lubricating oil in the laboratory thermostat. After the oil pump starts, put the energy regulating valve in the unloading position, confirm that the slide valve is zero, and adjust the oil pressure control valve;
4. Turn on the power supply of the laboratory thermostat compressor, start the control switch, and open the compressor suction valve. After 3 minutes, the compressor starts to work;
5. After the laboratory thermostat equipment compressor is running, adjust the lubricating oil pressure value to be higher than the discharge pressure, close the solenoid valve control circuit on the liquid supply pipe, start the solenoid valve to enter the liquid refrigerant, and place the energy adjustment device on the charging position, gradually increasing the load;
6. When the laboratory thermostat compressor reaches the lubrication temperature after operation, please turn off the power of the electric heater and open the inlet and outlet valves of the cooling water to keep the oil temperature within the working cycle of the compressor;
7. Check the start-up items of the laboratory thermostat. After start-up and operation, the following checks should be carried out to ensure the normal operation of the equipment. The sound and vibration of the cooling pump, cooling pump and fan, as well as the water outlet pressure and water temperature of the water pump are all within normal working parameters. within the scope;
8. When the laboratory thermostat compressor is running, whether the working current of the motor is within the specified range. If the current is too large, it should be adjusted to reduce the operating load and prevent the motor from burning out due to excessive working current.

Model		SUNDI-1035W	SUNDI-1055W	SUNDI-1075W	SUNDI-10A10W	SUNDI-10A15W	SUNDI-10A25W	SUNDI-10A38W	SUNDI-10A60W	SUNDI-10A80W
Temp. range		-100℃～+135℃（the system add pressure 3bar)
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp control and jacket temp control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		10 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment,  reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃
Material temp. accuracy		±1℃
Heating power kW		3.5	5.5	7.5	10	15	25	38	60	80
Cooling capacity kW at	135℃	3.5	5.5	7.5	10	15	25	38	60	80
	0℃	3.5	5.5	7.5	10	15	25	38	60	80
	-60℃	2.8	5	6.2	8	9	15	23	38	52
	-80℃	1.9	2.8	3.4	4.1	5	8	13	22	30
	-90℃	0.7	1.2	1.6	2	3	4.8	7.5	12	16
	-100℃	0.45	0.7	0.9	1.2	1.8	2.9	4.5	7.2	9.5
Circulation pump max L/min bar		35	35	50	60	110	150	200	400	400
		12	1.2	1.2	1.5	1.5	1.5	1.5	2.5	2.5
Pump		Magnetic drive pump
Compressor		Dorin semi-closed compressor
Oil separator		EMERSON
Expansion valve		Electronic expansion valve
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R23/R14
Connection size		ZG3/4	ZG3/4	ZG1	ZG1	DN32 PN10	DN32 PN10	DN40 PN10	DN65 PN10	DN65 PN10
Water-cooled type W(cooling water@20℃)		3500L/H 1.5bar~4bar	5000L/H 1.5bar~4bar	7000L/H 1.5bar~4bar	9000L/H 1.5bar~4bar	12m³/H 1.5bar~4bar	20m³/H 1.5bar~4bar	25m³/H 1.5bar~4bar	40m³/H 1.5bar~4bar	50m³/H 1.5bar~4bar
Dimension cm		80*120*185	80*120*185	150*100*185	150*100*185	200*145*205	205*145*205	250*160*225	300*160*225	400*160*225
Weight kg		435	565	705	890	1250	1600	2100	2950	3350
Power 380V 50HZ		12kW max	18kW max	24kW max	30kW max	40kW max	60kW max	85kW max	135kW max	200kW max

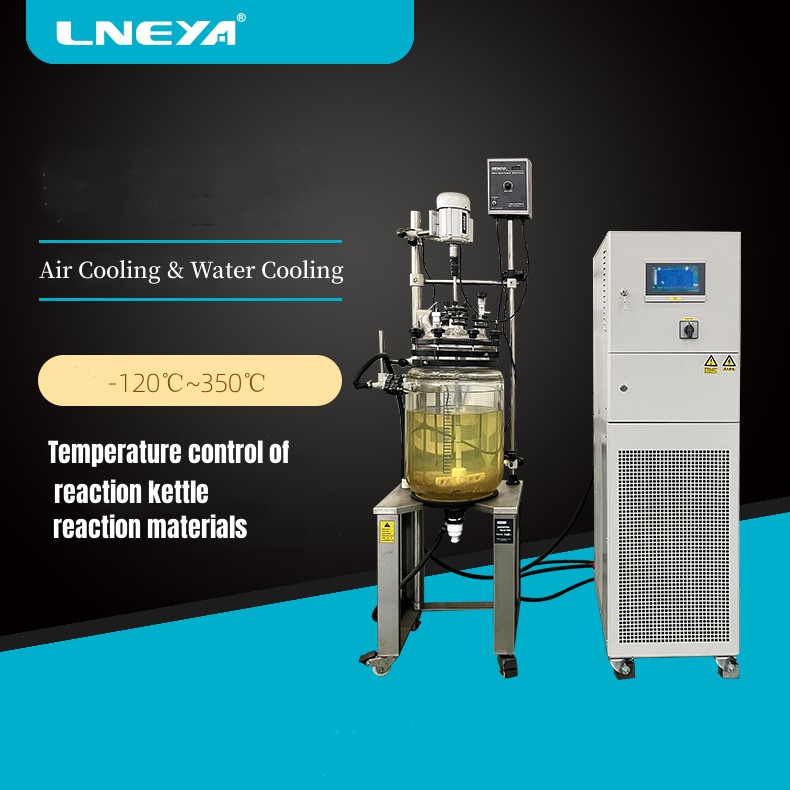

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.

Model		SUNDI-925W	SUNDI-935W	SUNDI-955W	SUNDI-975W	SUNDI-9A10W	SUNDI-9A15W	SUNDI-9A25W	SUNDI-9A38W	SUNDI-9A60W	SUNDI-9A80W
Temp. range		-90℃～+250℃（the system add pressure 3bar)
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		10 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment,  reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃								±1℃
Material temp. accuracy		±1℃
Heating power kW		2.5	3.5	5.5	7.5	10	15	25	38	60	80
Cooling capacity kW at	250℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	0℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	-40℃	2	2.8	5	6	8	12	20	31	48	64
	-60℃	1.1	1.9	2.8	3.2	4.2	6	10	16	24	32
	-80℃	0.35	0.5	0.8	1.2	1.6	2.1	3.5	6	11	15
	-85℃	0.2	0.3	0.5	0.7	0.85	1.3	1.9	3.5	6	8
Circulation pump max L/min bar		20	35	35	50	60	110	150	200	400	400
		2	2	2	2	2.5	2.5	2.5	2.5	2.5	2.5
Pump		LNEYA magnetic drive pump							German magnetic drive pump
Compressor		Tecumseh closed compressor		Dorin semi-closed compressor
Expansion valve		Emerson thermal expansion valve/Emerson electronic expansion valve/danfoss thermal expansion valve.
Evaporator		DANFOSS/KAORI Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R23/R14 mixture，optional: R125/R23/R14 mixture
Connection size		G3/4	G3/4	G3/4	G1	G1	DN32 PN10	DN32 PN10	DN40 PN10	DN50 PN10	DN50 PN10
Water-cooled type W(cooling water@20℃)		1100L/H 1.5bar~4bar	1900L/H 1.5bar~4bar	2400L/H 1.5bar~4bar	3200L/H 1.5bar~4bar	4000L/H 1.5bar~4bar	8m³/H 1.5bar~4bar	12m³/H 1.5bar~4bar	20m³/H 1.5bar~4bar	30m³/H 1.5bar~4bar	40m³/H 1.5bar~4bar
Dimension cm		55*100*175	45*85*130	55*100*175	55*100*175	70*100*175	100*150*185	205*145*205	205*145*205	245*145*225	300*160*225
Weight kg		260	295	365	570	680	950	1400	1750	2400	3150
Power 380V 50HZ		8kW	11kW	16kW	21kW	27kW	38kW	54kW	79kW	120kW	170kW

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.

Model		SUNDI-825W	SUNDI-835W	SUNDI-855W	SUNDI-875W	SUNDI-8A10W	SUNDI-8A15W	SUNDI-8A25W	SUNDI-8A38W	SUNDI-8A60W	SUNDI-8A80W
Temp. range		-80℃～+250℃
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol, RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment,  reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃
Material temp. accuracy		±1℃
Heating power kW		2.5	3.5	5.5	7.5	10	15	25	38	60	80
Cooling capacity kW at	250℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	250℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	0℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	-40℃	1.8	2.6	3.3	5.8	6.4	11	20	31	48	65
	-60℃	1	1.4	1.6	3	3.5	5.8	10	16	23	32
	-75℃	0.3	0.42	0.7	1.3	1.5	2.4	5	8	11	16
Circulation pump max L/min bar		20	35	35	50	60	110	150	200	400	400
		1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5	2.5	2.5
Pump		Magnetic drive pump
Compressor		Emerson Valley Wheel Vortex Flexible Compressor/Carlisle
Expansion valve		Electronic expansion valve
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R23/R14
Connection size		ZG1/2	ZG3/4	ZG3/4	ZG1	ZG1	ZG1	DN32 PN10	DN40 PN10	DN65 PN10	DN65 PN10
Water-cooled type W(cooling water@20℃)		1800L/H 1.5bar~4bar	2000L/H 1.5bar~4bar	2400L/H 1.5bar~4bar	3500L/H 1.5bar~4bar	3600L/H 1.5bar~4bar	5200L/H 1.5bar~4bar	10m³/H 1.5bar~4bar	18m³/H 1.5bar~4bar	28m³/H 1.5bar~4bar	30m³/H 1.5bar~4bar
Dimension cm		55*70*175	55*70*175	65*85*185	70*85*185	70*80*185	80*120*185	150*100*185	200*145*205	245*170*225	300*160*225
Weight kg		240	285	345	500	600	950	1300	1550	2200	2850
Power 380V 50HZ		7.5kW	9kW	12kW	17kW	22kW	32kW	54kW	82kW	130kW	177kW

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.

Model		SUNDI-725W	SUNDI-735 SUNDI-735W	SUNDI-755 SUNDI-755W	SUNDI-775 SUNDI-775W	SUNDI-7A10W	SUNDI-7A15W
Temp. range		-70℃～+250℃
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 Or 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment, reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃
Material temp. accuracy		±1℃
Heating power kW		2.5	3.5	5.5	7.5	10	15
Cooling capacity kW at	250℃	2.5	3.5	5.5	7.5	10	15
	100℃	2.5	3.5	5.5	7.5	10	15
	20℃	2.5	3.5	5.5	7.5	10	15
	-60℃	0.4	0.55	0.75	0.9	1.2	2.8
Circulation pump max L/min bar		20	35	35	50	60	110
		1.2	1.2	1.2	1.2	1.5	1.5
Pump		LNEYA magnetic drive pump
Compressor		Tecumseh				Dorin
Expansion valve		Electronic expansion valve
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R23
Connection size		ZG1/2	ZG3/4	ZG3/4	ZG1	ZG1	ZG1
Water-cooled type W(cooling water@20℃)		900L/H 1.5bar~4bar	1200L/H 1.5bar~4bar	1800L/H 1.5bar~4bar	2300L/H 1.5bar~4bar	3200L/H 1.5bar~4bar	4500L/H 1.5bar~4bar
Dimension cm		55*70*175	55*70*175	65*85*185	65*85*185	70*85*185	80*120*185
Weight kg		190	275	320	370	370	420
Power 380V 50HZ		220V 5.8kW	8kW	11kW	14kW	19kW	28kW

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.

Model		SUNDI-625 SUNDI-625W	SUNDI-635 SUNDI-635W	SUNDI-655 SUNDI-655W	SUNDI-675 SUNDI-675W	SUNDI-6A10 SUNDI-6A10W	SUNDI-6A15W	SUNDI-6A25W	SUNDI-6A38W	SUNDI-6A60W
Temp. range		-60℃～+250℃
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment,  reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃
Reaction material temp. acccuracy		±1℃
Heating power kW		2.5	3.5	5.5	7.5	10	15	25	38	60
Cooling capacity kW at	250℃	2.5	3.5	5.5	7.5	10	15	25	38	60
	100℃	2.5	3.5	5.5	7.5	10	15	25	38	60
	20℃	2.5	3.5	5.5	7.5	10	15	25	38	60
	-20℃	2	3	4.8	6	8.2	12	25	38	56
	-40℃	0.95	1.45	2.3	3.1	4.8	7.8	18	23	31
	-55℃	0.25	0.5	0.75	0.9	1.5	2.8	6	8	11
Circulation pump max L/min bar		20	35	35	50	60	110	150	200	250
		1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5	2.5
pump		Magnetic drive pump
Compressor		Tecumseh closed compressor					Dorin semi-closed compressor
Expansion valve		Electronic expansion valve
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R23
Connection size		ZG1/2	ZG3/4	ZG3/4	ZG1	ZG1	ZG1	DN32 PN10	DN40 PN10	DN50 PN10
Water-cooled type W(cooling water@20℃)		900L/H 1.5bar~4bar	1200L/H 1.5bar~4bar	1800L/H 1.5bar~4bar	2100L/H 1.5bar~4bar	3000L/H 1.5bar~4bar	4000L/H 1.5bar~4bar	8.5m³/H 1.5bar~4bar	14m³/H 1.5bar~4bar	20m³/H 1.5bar~4bar
Dimension cm		55*70*175	55*70*175	55*70*175	65*85*185	65*85*185	80*120*185	150*100*185	200*145*205	200*145*205
Weight kg		205	225	300	340	380	380	980	1350	1580
Power 380V 50HZ		5kW max	7.5kW	11kW	14kW	19kW	26.5kW	49kW	73kW	103kW

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.

Model		SUNDI-555WV	SUNDI-575WV	SUNDI-5A10WV	SUNDI-5A15WV	SUNDI-5A25WV
Temp. range		-45℃～+300℃  (the system add pressure 3bar)
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment,  reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃
Material temp. accuracy		±1℃
Heating power		5.5	7.5	10	15	25
Cooling capacity kW at	250℃	5.5	7.5	10	15	25
	100℃	5.5	7.5	10	15	25
	20℃	5.5	7.5	10	15	25
	0℃	5	7	10	15	25
	-20℃	2.9	4.2	6	11	16
	-40℃	0.9	1.5	2	3.8	4.7
Circulation pump max L/min bar		35	50	60	110	150
1.2	1.2	1.5	1.5	2.5
Pump		LNEYA magnetic drive pump
Compressor		DANFOSS/ Emerson copeland vortex flexible
Expansion valve		Electronic expansion valve.
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R507C
Connection size		ZG3/4	ZG1	ZG1	ZG1	DN32 PN10
Water-cooled type W(@20℃)		1500L/H 1.5bar~4bar	1800L/H 1.5bar~4bar	2600L/H 1.5bar~4bar	3200L/H 1.5bar~5bar	7m³/H 1.5bar~4bar
Dimension cm		55 *70 *175	55 *70 *175	65 *85 *190	65 *85 *190	80 *120 *185
Weight kg		245	285	320	360	420
Power 380V 50HZ		9kW max	11.5kW max	16kW max	23kW max	37kW max
Optional		The sundi series can be selected within the heating power of 25kW. The temperature control accuracy of the medium is ±0.1°C, and the temperature control accuracy of the material is ±0.1°C.

Model		SUNDI-535 SUNDI-535W	SUNDI-555 SUNDI-555W	SUNDI-575 SUNDI-575W	SUNDI-5A10 SUNDI-5A10W	SUNDI-5A15 SUNDI-5A15W	SUNDI-4A25 SUNDI-4A25W	SUNDI-4A38W	SUNDI-4A60W	SUNDI-4A95W	SUNDI-4A130W	SUNDI-4A200W
Temp. range		-45℃～+250℃
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol, RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment, reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃
Material temp. accuracy		±1℃
Heating power kW		3.5	5.5	7.5	10	15	25	38	60	95	130	200
Cooling capacity kW at	250℃	3.5	5.5	7.5	10	15	25	38	60	95	130	200
	100℃	3.5	5.5	7.5	10	15	25	38	60	95	130	200
	20℃	3.5	5.5	7.5	10	15	25	38	60	95	130	200
	0℃	3	5	7	10	15	25	38	60	95	130	200
	-20℃	1.5	2.9	4.2	6	11	16	26	34	50	70	120
	-40℃	0.45	0.9	1.5	2	3.8	4.7	9	12	18	24	43
Circulation pump max L/min bar		35	35	50	60	110	150	200	250	400	400	600
		1.2	1.2	1.2	1.5	1.5	1.5	1.5	2.5	2.5	2.5	2.5
Pump		Magnetic drive pump						Magnetic drive pump
Compressor		Emerson, Danfoss, Italy Dorin,French Tecumseh.
Expansion valve		Emerson thermal expansion valve/danfoss thermal expansion valve.
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R507C, optional: R448A
Connection size		ZG3/4	ZG3/4	ZG3/4	ZG1	ZG1	DN32 PN10	DN50 PN10	DN50 PN10	DN65 PN10	DN65 PN10	DN65 PN10
Water-cooled type W(cooling water@20℃)		1200L/H 1.5bar~4bar	1500L/H 1.5bar~4bar	1800L/H 1.5bar~4bar	2600L/H 1.5bar~4bar	3200L/H 1.5bar~4bar	7m³/H 1.5bar~4bar	10m³/H 1.5bar~4bar	15m³/H 1.5bar~4bar	20m³/H 1.5bar~4bar	32m³/H 1.5bar~4bar	42m³/H 1.5bar~4bar
Dimension cm		45*70*160	55*70*175	55*70*175	65*85*185	70*85*185	80*120*185	150*100*185	200*145*205	200-145-205	250-145-225	300*160*225
Weight kg		180	195	260	320	390	620	820	1100	1350	1680	2250
Power 380V 50HZ		6.2kW	9kW	11.5kW	16kW	23kW	37kW	55kW	85kW	130kW	178kW	280kW

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.

Model		SUNDI-225 SUNDI-225W	SUNDI-235 SUNDI-235W	SUNDI-255 SUNDI-255W	SUNDI-275 SUNDI-275W	SUNDI-2A10 SUNDI-2A10W	SUNDI-2A15 SUNDI-2A15W	SUNDI-2A25 SUNDI-2A25W	SUNDI-2A38W	SUNDI-2A60W	SUNDI-2A95W	SUNDI-2A130W	SUNDI-2A200W
Temp. range		-25℃～+200℃
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol, RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment,reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃								±1℃
Material temp. accuracy		±1℃										±1.5℃
Heating power kW		2.5	3.5	5.5	7.5	10	15	25	38	60	95	130	200
Cooling capacity kW at	200℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95	130	200
	100℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95	130	200
	50℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95	130	200
	20℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95	130	200
	-5℃	2	3	4.5	6.6	8	12	19	30	46	70	80	125
	-20℃	1	1.8	2.8	3.8	4.6	7	12	16	22	32	43	65
Circulation pump max L/min bar		20	35	35	50	50	110	150	200	250	400	400	600
		1	1.2	1.2	1.2	1.2	1.5	1.5	1.5	2.5	2.5	2.5	2.5
Compressor		Mitsubishi	Emerson copeland vortex flexible								Dorin seni-closed compressor
Expansion valve		Emerson thermal expansion valve/danfoss thermal expansion valve.
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A，optional: R448A/R125
Connection size		ZG1/2	ZG3/4	ZG3/4	ZG1	ZG1	Z G1	DN32 PN10	DN40 PN10	DN50 PN10	DN65 PN10	DN65 PN10	DN80 PN10
Water-cooled type W(cooling water@20℃)		600L/H 1.5bar~4bar	800L/H 1.5bar~4bar	1000L/H 1.5bar~4bar	1200L/H 1.5bar~4bar	1600L/H 1.5bar~4bar	2200L/H 1.5bar~4bar	6m³/H 1.5bar~4bar	10m³/H 1.5bar~4bar	14m³/H 1.5bar~4bar	20m³/H 1.5bar~4bar	28m³/H 1.5bar~4bar	36m³/H 1.5bar~4bar
Dimension(water type）cm		40*70*130	45*70*160	45*700*160	55*700*175	65*85*185	70*85*185	80*120*185	150*100*185	200*145*205	200*145*205	250*145*225	300*160*225
Weight kg		115	165	185	230	280	300	550	750	1000	1250	1580	2150
Power 380V 50HZ		4kW	5.6kW	8kW	11kW	14kW	21kW	35kW	54kW	81kW	126kW	165kW	260kW

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.

Model SUNDI-125SUNDI-125W SUNDI-135SUNDI-135W SUNDI-155SUNDI-155W SUNDI-175SUNDI-175W SUNDI-1A10SUNDI-1A10W SUNDI-1A15SUNDI-1A15W Temp. range -10℃～+150℃ Control Mode Feedback PID + Our special dynamic control calculation, PLC controller Temp. control Process temp. control and jacket temp. control model Temp. difference Set or control the temperature difference between jacket oil and raw material process Program Editor 5 programs, each program can edit 40 steps Communication Portocol MODBUS RTU Protocol, RS485 interface Material temp. feedback PT100 OR 4～20mA or communication（normal: PT100) Temp. feedback The temp. of three points: the inlet and outlet of equipment,reactor material temp.(external temp. sensor) Medium temp. acccuracy ±0.5℃ Material temp. accuracy ±1℃ Heating power kW 2.5 3.5 5.5 7.5 10 15 Cooling capacity kW at 200℃ 2.5 3.5 5.5 7.5 10 15   20℃ 2.5 3.5 5.5 7.5 10 15   -5℃ 1.5 2.1 3.3 4.2 6 9 Circulation pump maxL/min bar 20 35 35 50 50 75   1 1 1 1.2 1.2 1.2 Compressor Mitsubishi Mitsubishi Emerson copeland vortex flexible Emerson copeland vortex flexible Emerson copeland vortex flexible Emerson copeland vortex flexible Expansion valve Electronic expansion valve Evaporator Plate heat exchanger Operation Panel 7-inch touch screen，show temp curve\EXCEL data output Safety protection Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. Closed circulation system The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature. Refrigerant R404A/R507C, optional: R448A Connection size ZG1/2 ZG3/4 ZG3/4 ZG1 ZG1 ZG1 Water-cooled type W(cooling water@20℃) 600L/H1.5bar~4bar 800L/H1.5bar~4bar 1000L/H1.5bar~4bar 1200L/H1.5bar~4bar 1600L/H1.5bar~4bar 2000L/H1.5bar~4bar Dimension(water type）mm 400*700*1300 450*700*1600 450*700*1600 550*700*1750 550*700*1750 700*850*1850 Weight kg 115 165 185 235 280 300 Power AC 220V 50HZ 4kW max AC 380V 50HZ 5.6kW max AC 380V 50HZ 8kW max AC 380V 50HZ 10.5kW max AC 380V 50HZ 13.8kW max AC 380V 50HZ 20kW max

Model

SUNDI-125 SUNDI-125W

SUNDI-135 SUNDI-135W

SUNDI-155 SUNDI-155W

SUNDI-175 SUNDI-175W

SUNDI-1A10 SUNDI-1A10W

SUNDI-1A15 SUNDI-1A15W

Temp. range

-10℃～+150℃

Control Mode

Feedback PID + Our special dynamic control calculation, PLC controller

Temp. control

Process temp. control and jacket temp. control model

Temp. difference

Set or control the temperature difference between jacket oil and raw material process

Program Editor

5 programs, each program can edit 40 steps

Communication Portocol

MODBUS RTU Protocol, RS485 interface

Material temp. feedback

PT100 OR 4～20mA or communication（normal: PT100)

Temp. feedback

The temp. of three points: the inlet and outlet of equipment,reactor material temp.(external temp. sensor)

Medium temp. acccuracy

±0.5℃

Material temp. accuracy

±1℃

Heating power kW

2.5

3.5

5.5

7.5

10

15

Cooling capacity kW at

200℃

2.5

3.5

5.5

7.5

10

15

20℃

2.5

3.5

5.5

7.5

10

15

-5℃

1.5

2.1

3.3

4.2

6

9

Circulation pump max L/min bar

20

35

35

50

50

75

1

1

1

1.2

1.2

1.2

Compressor

Mitsubishi

Mitsubishi

Emerson copeland vortex flexible

Emerson copeland vortex flexible

Emerson copeland vortex flexible

Emerson copeland vortex flexible

Expansion valve

Electronic expansion valve

Evaporator

Plate heat exchanger

Operation Panel

7-inch touch screen，show temp curve\EXCEL data output

Safety protection

Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.

Closed circulation system

The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.

Refrigerant

R404A/R507C, optional: R448A

Connection size

ZG1/2

ZG3/4

ZG3/4

ZG1

ZG1

ZG1

Water-cooled type W(cooling water@20℃)

600L/H 1.5bar~4bar

800L/H 1.5bar~4bar

1000L/H 1.5bar~4bar

1200L/H 1.5bar~4bar

1600L/H 1.5bar~4bar

2000L/H 1.5bar~4bar

Dimension(water type）mm

400*700*1300

450*700*1600

450*700*1600

550*700*1750

550*700*1750

700*850*1850

Weight kg

115

165

185

235

280

300

Power

AC 220V 50HZ 4kW max

AC 380V 50HZ 5.6kW max

AC 380V 50HZ 8kW max

AC 380V 50HZ 10.5kW max

AC 380V 50HZ 13.8kW max

AC 380V 50HZ 20kW max

Application: Various Reactors (Microchannels, Glass, Jacketed Reactors, etc.), Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Aerospace, Biological and Other Industries.
