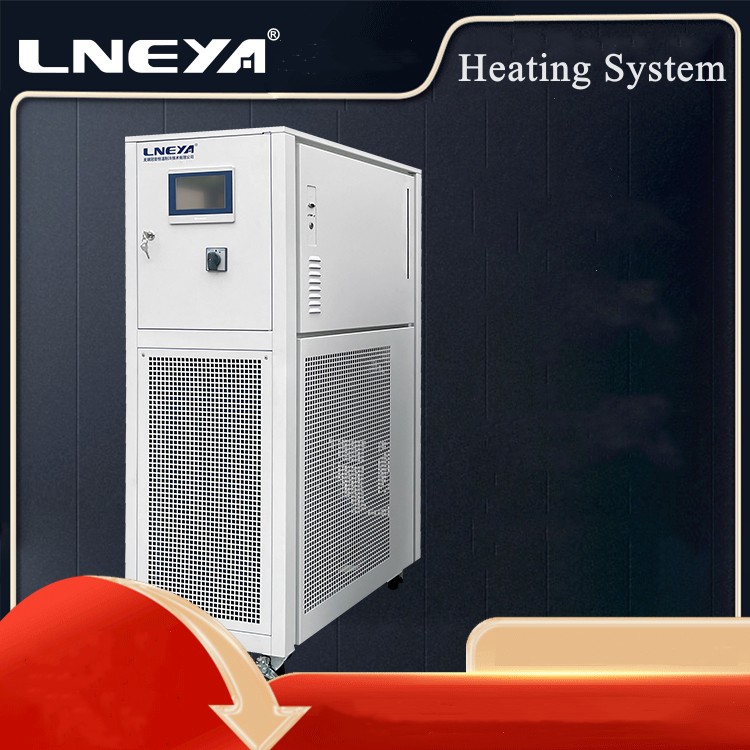

Operating principle knowledge of heating system

The heating system is a fluid cooling and heating temperature control equipment commonly used in pharmaceutical, chemical, and components. It can conduct dynamic temperature control of cooling and heating for different temperature ranges. It is widely used in industrial production and is applicable to the reaction of various phase materials. Different types of mixing and heat transfer devices are equipped. So how much do you know about the control mode of heating system?

1. The heating system selects the reactor temperature control system through the cooling coil, which is equipped with cooling inlet and outlet, cooling water, refrigerant and external circulating coolant.

2. Regarding the orientation of the device for cooling coil of the heating system, the device is usually located inside the reactor to reduce the temperature of the material in the reaction, and can be placed outside when the material viscosity is high or the coil needs mixing mode; When the medium is used as a heating source, the cooling coil can be placed in the medium. The heating of the resistance wire depends on the specific situation, but the heating effect and cooling effect should be considered.

3. It can be operated intermittently or continuously or semi-continuously. It can be operated by a single kettle or by multiple kettles in series. It has wide application, flexible operation and easy control of concentration. It is usually composed of kettle body, heat exchange device, mixer and heat transfer device.

4. The operation process is to operate on the display screen of the equipment, set the temperature range, and then operate the equipment itself, which provides convenience and efficiency for production and processing.

5. The main function is to control the temperature of the reaction kettle, improve the heat transfer efficiency, meet the strict requirements of high process standards, close cycle heating, small heat loss, and wide range of use.

6. In the chemical industry, the flow of equipment can be customized. According to the user’s requirements, the reasonable matching between low temperature and refrigeration capacity, lo

w temperature and container capacity can meet the actual needs of different users.
