GY-150℃~-20℃

GY -150℃~-20℃

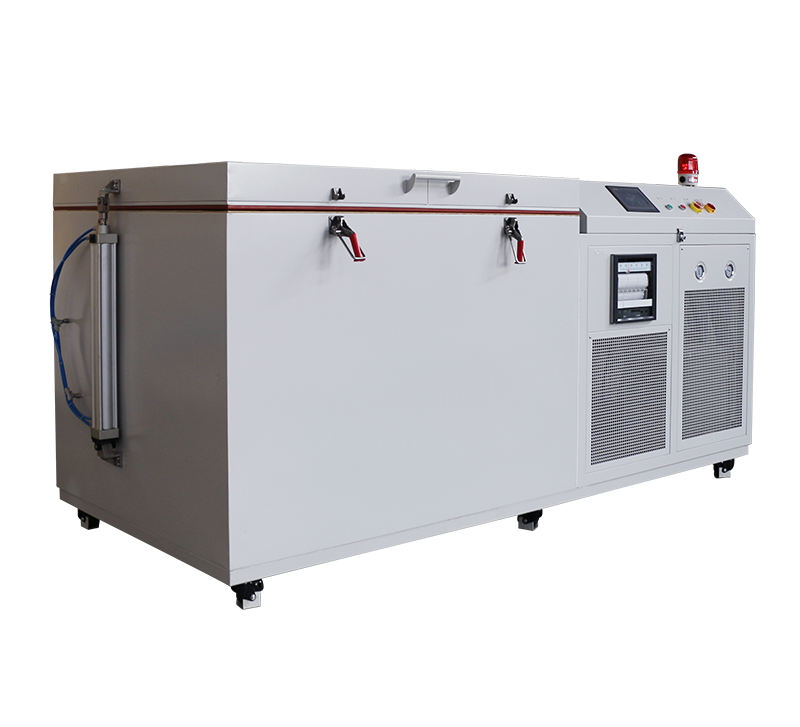

horizontal industrial refrigerator
  • Cooling Power @-110℃0.7kW~2kW
  • Power range12kW~40kW
  • Storage Capacity280l~1000L
  • Temperature fluctuation±2℃
  • RefrigerantR404A/R23
  • Weight570KG~1250KG
  • Place of OriginChina

Parameters Detailed

If the low temperature refrigeration system has been frosted, believing that some enterprises have met, then how should we deal with such situation? Are there any methods can solve this problem. Today, let’s know something about it with Guanya refrigeration company.

1. First turn off the suction valve of the low temperature box compressor and unload to the minimum number of cylinders to operate.

2. Then close the liquid supply valve of the intermediate cooler and close the suction valve of the small high pressure cylinder.

3. After the high pressure cylinder is returned to normal, open the suction valve of the large and low pressure cylinder again. When  the normal operation has been resumed, then supply the liquid to the intermediate cooler.

4. If the frosting of high pressure cylinder is severe, the operation of the unit must be stopped.

5. Drain the intermediate cooler.

6. The cooling water treatment is the same as the single-stage treatment.

Do you remember the above way of processing? If you still have some questions, please contact the customer service on the official website of Guanya refrigeration company immediately, and solve the problem in time!

Click online message to inquire about product details
Send us a message and we will contact you as soon as possible
Send us a message and we will contact you as soon as possible
*
*
Submitting…
提交成功!
Submission failed! Please try again later
邮箱错误!
电话错误!

Model

GX-6528N

GX-6550N

GX-6580N

GY-6528N

GY-6550N

GY-6580N

GY-65A16N

volume

280L

500L

800L

280L

500L

800L

1600L

Inner dimension cm

61
*60
*76

80
*74
*85

100
*80
*100

80
*60
*60

120
*65
*65

135
*80
*75

200
*90
*90

Type

(Vertical)

(Chest/Horizontal)

Capacibility carrying

150KG

220KG

300KG

150KG

220KG

300KG

650KG



Designed bearing capacity is two times of the standard one, (refrigeration system is designed according to the standard capacity when target artifact weight is greater than the standard capacity, the cooling rate will decrease)

Temp. range

-65℃~60℃

-65℃~60℃

-65℃~60℃

-65℃~60℃

-65℃~60℃

-65℃~60℃

-65℃~60℃

Cooling capacity at -60℃

1kw

1.5kw

2.5kw

1kw

1.5kw

2.5kw

4kw

Temp. accuracy

±2℃

±2℃

±2℃

±2℃

±2℃

±2℃

±2℃

Heating power

2kw

3kw

5kw

2kw

3kw

5kw

8kw



Nickel-chromium alloy electric heating heater, the controller has double safety protection, with independent temperature limiter protection.

Cooling rate

(ambient temperature of 25 degrees, no-load, from 60 degrees to -60 degrees about 1 hour).;cooling rate will be a little different for temperature changes.

Controller

PLC multifunctional controller

Operation panel

7-inch color touch screen, display set temperature, measured temperature.

Temp. record

Temperature curve and fault record, U-disk data export, excel format.

Inside circulating air

1650 m³/h

2100 m³/h

2750 m³/h

2100 m³/h

2750 m³/h

3500 m³/h

6000 m³/h



When it is open, the internal circulation fan automatically turns off. The touchscreen displays open state.

Compressor

Emerson Copeland, adopt cascade refrigeration technology

Intermediate heat exchanger

Plate heat exchanger

Dry filter

Emerson

Expansion valve

Electronic expansion valve

Evaporator

Copper-tube with aluminum-fin

Cooling Type

Air-cooled with water-cooled auxiliary functions (Ensure good cooling capacity when temp. above 30 degrees)

Means of insulation

Polyurethane foam insulation, thermal insulation layer 125 mm, with embedded FIR boards

Safety Protection

Self-diagnosis function; Phase sequence phase failure protection; leakage protector; cooling unit overload protection; high and low pressure switch, overload relay, thermal protection device, high temperature protection and temperature fault protection.

Case material

Outside is cold rolled steel painting, internal is SUS304 wire drawing board.

Refrigerant

R404A/R23

Dimension mm

1150*1150*
1850

1350*1300*
1850

1550*1300*
2100

2200*1150*
1150

2700*1200*
1200

2900*1300*
1250

3700*1400*
1350

Power 380V 50HZ

5.5KW MAX

7.5KW MAX

13.5KW MAX

5.5KW MAX

7.5KW MAX

13.5KW MAX

19KW MAX

Weight

380kg

480kg

650kg

385kg

485kg

650kg

780kg

Optional

High temperature reaches 150degree and temperature accuracy is ±0.5degree;the input power will be changed(When select this model, the thickness of thermal insulation layer will be 150mm,thermal insulation material will be silicate and vacuum plate)

Optional

Closed circulating oil heating system, no direct electric heating element inside the box, suitable for flammable products test

Optional

Temp. accuracy ±0.5℃

Optional

Cooling and heating program controlled, meet cold treatment process requirements(can set 5 programs, each program can edit 40 steps.)

Optional

Interior door, reduce cooling capacity lost when picking small workpieces (temperature below 60 degrees optional)

Optional

Outside SUS304 wire drawing board case

Optional

Diameter 50mm cable hole

Optional

Electric heating vacuum glass observation window (with lighting) 200mm*300mm

Optional

Low temperature automatic defrost (can be once per hour or use manual button to defrost), ensure it can work at low temperature for long time even the door is open and close frequently)

Working Principle

Applications

It is used in industrial cold treatment, mainly in the application of cold work mold steel, high-speed steel, bearing steel, cold work molds and mold accessories;


This industrial cold treatment box can significantly increase the hardness and strength of the workpiece, ensure the dimensional accuracy of the workpiece, improve the wear resistance and impact toughness of the workpiece, and improve the stress distribution within the workpiece;


Mainly used for cold shrinkage of copper sleeves, bearings, etc., and widely used in precision machinery assembly;


It is also widely used in ultra-low temperature testing of large equipment (automobiles, large engineering machinery, aircraft components, aerospace equipment components, military equipment components);

Customization of Cold Assembly Freezer Solution
