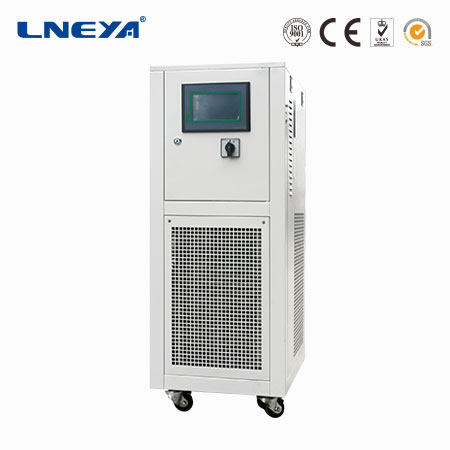

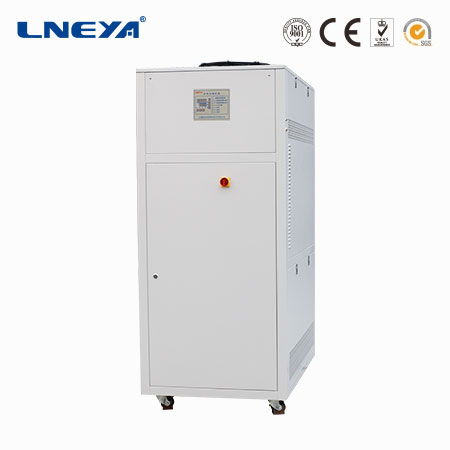

FL Seires water chiller/recirculating chiller/laboratory chiller

FL 5℃~35℃ Cooling Water Chiller

Save water resources

Liquid storage volume15L~300L
Cooling power1.8kW~50kW
Power range1.5kW~17kW
RefrigerantR407C
Weight115kG~800kG
Details

chiller chiller system cooling water chiller water chiller

Request A Inquiry

Parameters Description

The temperature of the heat transfer liquid can be adjusted;
  It adopts international famous brand compressors such as Aspara, Danfoss, Meiyoule and Copeland, and has stable performance and can work continuously;
   User-friendly design, flexible and convenient;
   Microcomputer temperature controller, temperature digital display, adjustment unit 0.1℃, temperature range -5℃ to 35℃;
   Use hot gas bypass to save energy and improve control accuracy;
   Multiple fault alarms (over temperature alarm, sensor alarm, high pressure alarm, compressor overheat alarm);
   Boot delay protection; all components are safely grounded;
   The high performance circulation pump is guaranteed to run 24 hours a day.

Model

FL-0250

FL-0500

FL-0700

FL-1000

FL-1500

FL-2000

FL-2600

FL-3500

FL-5000

Cooling Capacity

20℃

2.5kW

5kW

7kW

10kW

15kW

20kW

26kW

35kW

50kW

10℃

1.8kW

3.6kW

5kW

7.2kW

11kW

14.5kW

18.5kW

25.2kW

36kW

Circulation pump flow, pressure

25L/min
2BAR

35L/min
2.5BAR

50L/min
2.5BAR

75L/min
2.5BAR

110L/min
2.5BAR

200L/min
2.5BAR

250L/min
2.5BAR

Capacity of liquid storage

15L

25L

40L

60L

70L

100L

200L

300L

Connection Size

ZG1/2

ZG3/4

ZG1

ZG1 1/4

DN40 PN10

Product size（cm)

45*65*120

50*85*130

55*100*175

70*100*175

80*120*185

95*170*205

100*200*220

Weight

115KG

145kg

180kg

225kg

290kg

340kg

400KG

560KG

800KG

Power (max)
50HZ

AC220V
1.5kW

AC220V
2.2kW

AC220V
3kW

AC380V
4kW

AC380V
5kW

AC380V
6kW

AC380V
8kW

AC380V
12kW

AC380V
17kW

Medium Temperature Range

Standard FL series temperature range 5℃～35℃ only with cooling function, (FL-800 temperature range -15°C~30°C）

Temp. Control

PLC multifunctional controller, control temperature of water tank, temperature control accuracy ±0.5℃

Tem. Feedback

Temperature feedback PT100

Evaporator

Copper tube nickel plating

Operation panel

Display set temperature and measured temperature, touch key to operate input temperature

Safety Protection

Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function.

Refrigerant

R407C

Shell Material

Cold rolled steel painting

Optional

7-inch color touch screen, temperature curve record, data export excel-format

Optional

SUS304 Material

Optional Power

220V 60HZ three-phases，440V～480V 60HZ three-phases

Configuration Applications

Semiconductor Manufacturing Device Cooling:

Single chip cleaning, printing machine, automatic clamp installation equipment, spraying equipment, ion plating equipment, etching device, single-chip processing device, slicing machine, packaging machine, the temperature of the developer management, exposure device, magnetic part of the heating device, etc.

Laser Equipment Cooling:

Laser processing, heating part of the welding machine, laser marking device, chemical reaction plant, carbon dioxide laser processing machine, etc.

Other Industries Cooling:

Plasma welding, automatic packaging machine, mold cooling, washing machine, gold-plated groove, resin molding machine, precision grinding machine, injection molding machine of molding parts, etc.

Analysis Of Testing Machine Cooling:

Electronic microscope, ICP lighting light source part of the spectrum analysis device, heating part of the spectrophotometer, X-ray analytical device of heat source, automatic pulse heating part of the banner, the light source of atomic absorption spectrophotometer, etc.
